沸騰干燥機

沸騰干燥機

Fluid bed dryer

用途

該機是制藥工業固體制劑生產中普遍使用的工藝設備之一。它具有混合、干燥等多種功能。同時在制藥、化工、食品等行業廣泛使用。

APPLICATION

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, drying, etc. It is also widely used in such industries as medicine, chemical industry, food, etc.

原理

該機由主機、空氣處理系統、加熱系統、控制系統等組成。工作時，物料加入沸騰千燥機的料倉，按工藝要求設定程序和參數，整機開始工作。空氣經過空氣處理系統過濾、經加熱系統加熱后進入主機內，物料經熱空氣流化、干燥，水份迅速蒸發，物料被快速干燥。按設定的程序與參數完成操作后，將料倉推出與固定提升轉料機扣合提升出料或利用真空上料器抽到高位整粒機整粒，有效地控制粉塵與交叉污染。

PRINCIPLE

The machine is composed of the main machine, air handling system heating system, control system, etc. When it works, the materials enter the silo of the boiling dryer Set the procedures and parameters according to process requirements and the machine will start working After filtered by the air handling system and heated by the heating system, the air enters the main machine. After the materials are fluidified and dried by hot air, the moisture is evaporated rapidly and the materials are dried instantly. After the operations are completed according to the set procedures and parameters, the material silo is pushed out and assembled onto the fixed lifting material transterring machine for lifting discharging or is pumped to a high position by the vacuum charging machine for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination

特點

◆流態化干燥、熱質傳遞快；

◆在封閉負壓下操作，無粉塵飛揚；

◆采用抗靜電過濾材料，操作安全；

◆設備無死角，清洗徹底，無交叉污染；

◆滿足GMP規范要求。

FEATURES

Fluidized drying, fast heat and mass transfer;

Operation under closed negative pressure, no dust flying

Using anti-static filter material, safe operation

The equipment has no dead angle, clean thoroughly, no crosscontamination

Meet the requirements of GMP regulations

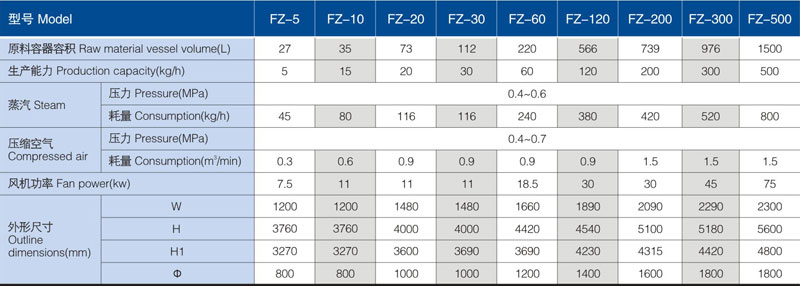

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
